slurm-web，也称为 slurm-wlm-web，是为 Slurm 工作负载管理器提供的一个 Web 界面。Slurm 是一个用于管理大型和小型 Linux 集群的开源、容错且高度可扩展的集群管理和作业调度系统。slurm-web 的主要功能是提供一个方便用户监控和管理 Slurm 集群的途径，而无需直接使用命令行工具。

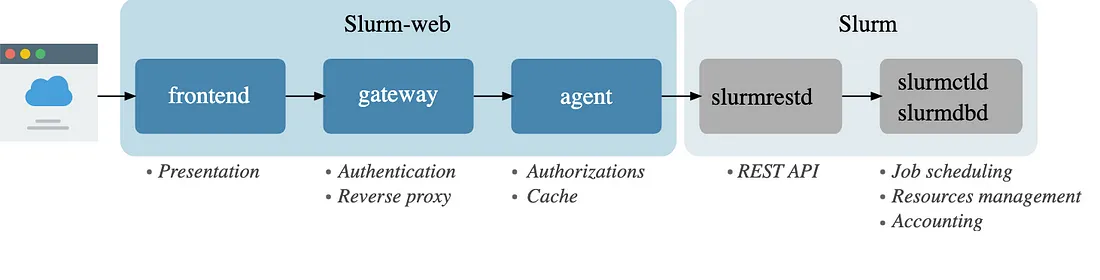

Slurm-web 在 Slurm 的基础上提供了一个 Web 界面，具有直观的图形视图、清晰的洞察力和先进的可视化功能，可用于跟踪作业和监控组织内 HPC 超级计算机的状态。Slurm-web要求Slurmdbd（版本 >= 23.02）的功能强大的 slurm HPC 集群。

Slurm-web的地址：https://github.com/rackslab/Slurm-web，前端采用vue，后端为Python的Flask。

安装步骤

安装 slurmrestd

python $ sudo apt install slurmrestd $ sudo systemctl enable slurmrestd $ sudo systemctl start slurmrestd

列出可用的 API 版本

```python
# sinfo --version
slurm-wlm 23.11.4
root@andrew-HP:~# slurmrestd -d list -u slurm
Possible data_parser plugins:
data_parser/v0.0.39
data_parser/v0.0.40
```

使用unix套接字测试 API

```python

curl --unix-socket /run/slurmrestd/slurmrestd.socket http://slurm/slurm/v0.0.40/diag

{
"statistics": {
"parts_packed": 1,
"req_time": {
"set": true,
"infinite": false,
"number": 1736735146
},
"req_time_start": {
"set": true,
"infinite": false,
"number": 1736728764
},
"server_thread_count": 2,
"agent_queue_size": 0,
"agent_count": 0,
"agent_thread_count": 0,
"dbd_agent_queue_size": 0,
"gettimeofday_latency": 15,
"schedule_cycle_max": 44,
"schedule_cycle_last": 43,
"schedule_cycle_total": 107,
"schedule_cycle_mean": 14,
"schedule_cycle_mean_depth": 0,
"schedule_cycle_per_minute": 1,
"schedule_queue_length": 0,
"schedule_exit": {
"end_job_queue": 107,
"default_queue_depth": 0,
"max_job_start": 0,
"max_rpc_cnt": 0,
"max_sched_time": 0,
"licenses": 0
},
"jobs_submitted": 0,
"jobs_started": 0,
"jobs_completed": 0,
"jobs_canceled": 0,
"jobs_failed": 0,
"jobs_pending": 0,
"jobs_running": 0,
"job_states_ts": {
"set": true,
"infinite": false,
"number": 1736735127
},
"bf_backfilled_jobs": 0,
"bf_last_backfilled_jobs": 0,
"bf_backfilled_het_jobs": 0,
"bf_cycle_counter": 0,
"bf_cycle_mean": 0,
"bf_depth_mean": 0,
"bf_depth_mean_try": 0,
"bf_cycle_sum": 0,
"bf_cycle_last": 0,
"bf_last_depth": 0,
"bf_last_depth_try": 0,
"bf_depth_sum": 0,
"bf_depth_try_sum": 0,
"bf_queue_len": 0,
"bf_queue_len_mean": 0,
"bf_queue_len_sum": 0,
"bf_table_size": 0,
"bf_table_size_mean": 0,
"bf_when_last_cycle": {
"set": true,
"infinite": false,
"number": 0
},
"bf_active": false,
"bf_exit": {
"end_job_queue": 0,
"bf_max_job_start": 0,
"bf_max_job_test": 0,
"bf_max_time": 0,
"bf_node_space_size": 0,
"state_changed": 0
},
"rpcs_by_message_type": [
{
"message_type": "MESSAGE_NODE_REGISTRATION_STATUS",
"type_id": 1002,
"count": 4,
"average_time": 117,
"total_time": 470
},
{
"message_type": "ACCOUNTING_REGISTER_CTLD",
"type_id": 10003,
"count": 1,
"average_time": 93108,
"total_time": 93108
},
{
"message_type": "REQUEST_PING",
"type_id": 1008,
"count": 297,
"average_time": 91,
"total_time": 27259
},
{
"message_type": "REQUEST_JOB_INFO",
"type_id": 2003,
"count": 297,
"average_time": 61,
"total_time": 18125
},
{
"message_type": "REQUEST_NODE_INFO",
"type_id": 2007,
"count": 299,
"average_time": 72,
"total_time": 21815
},
{
"message_type": "REQUEST_PARTITION_INFO",
"type_id": 2009,
"count": 299,
"average_time": 48,
"total_time": 14621
}
],
"rpcs_by_user": [
{
"user": "root",
"user_id": 0,
"count": 4,
"average_time": 117,
"total_time": 470
},
{
"user": "slurm",
"user_id": 1052,
"count": 1193,
"average_time": 146,
"total_time": 174928
}
]
},
"meta": {
"plugin": {
"type": "openapi/slurmctld",
"name": "Slurm OpenAPI slurmctld",
"data_parser": "data_parser/v0.0.40",
"accounting_storage": "accounting_storage/slurmdbd"
},
"client": {
"source": "/run/slurmrestd/slurmrestd.socket->socket:[78242] (fd 8)",
"user": "root",
"group": "root"
},
"command": [],
"slurm": {
"version": {
"major": "23",
"micro": "4",
"minor": "11"
},
"release": "23.11.4",
"cluster": "cluster"
}
},
"errors": [],
"warnings": []
```

参考资料

软件测试精品书籍文档下载持续更新 https://github.com/china-testing/python-testing-examples 请点赞，谢谢！
本文涉及的python测试开发库谢谢点赞！ https://github.com/china-testing/python_cn_resouce
python精品书籍下载 https://github.com/china-testing/python_cn_resouce/blob/main/python_good_books.md
Linux精品书籍下载 https://www.cnblogs.com/testing-/p/17438558.html
官网：https://slurm-web.com/
https://medium.com/@satishdotpatel/setup-slurm-web-for-slurm-hpc-clusters-13a9873094a1

安装 slurm-web

下载软件包的密钥

```sh
$ curl -sS https://pkgs.rackslab.io/keyring.asc | gpg --dearmor | tee /usr/share/keyrings/rackslab.gpg > /dev/null
$ vi /etc/apt/sources.list.d/rackslab.sources
Types: deb
URIs: https://pkgs.rackslab.io/deb
Suites: ubuntu24.04
Components: maindp
Architectures: amd64
Signed-By: /usr/share/keyrings/rackslab.gpg

$ sudo apt update
$ sudo apt install slurm-web-agent slurm-web-gateway
```
JWT 密钥

slurm-web 使用 JWT 令牌在组件之间进行身份验证。

```sh
$ /usr/libexec/slurm-web/slurm-web-gen-jwt-key
```

RacksDB

Slurm-web 使用 RacksDB 生成数据中心机架与计算节点的图形表示。

```sh
$ apt install racksdb
$ cp -r /usr/share/doc/python3-racksdb/examples/db/* /var/lib/racksdb/
$ racksdb datacenters
```

Slurm-web 配置文件

```sh

vi /etc/slurm-web/agent.ini

[service]
cluster=cluster
interface=localhost
port=5012

vi /etc/slurm-web/gateway.ini

[service]
interface=0.0.0.0
port=5011

[ui]
host=http://172.16.37.34:5011

[agents]
url=http://localhost:5012

$ sudo systemctl restart slurm-web-agent.service
$ sudo systemctl restart slurm-web-gateway.service
```
